Applications

Installations and Applications

Insect Screening Solutions & Sun Shields
Includes: The patented Flexible Magnetic Insect Screen.
                 Rollaway Cassette Insect Screening System.


Volkswagen Transporter T5 - sliding door insect screen



Toyota Hiace 100 Series - sliding door insect screen



Toyota Hiace 100 Series - Tailgate Insect Screen



AEC Swift Bus Motorhome Conversion -
featuring two part Flexible magnetic insect screens


Two part Flexible Magnetic Insect Screens for bus windows on motorhome conversion. A magnetic subframe is permanently installed externally on alloy window frames. The flexible magnetic insect screen attaches magnetically to the sub frame. Note radius corners.

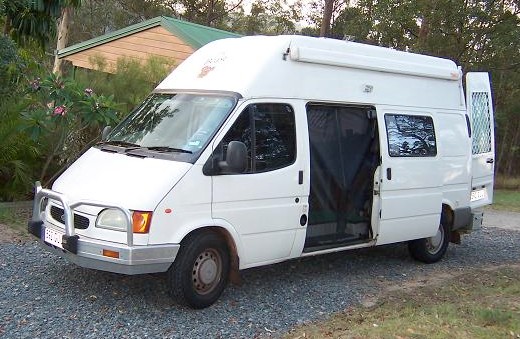

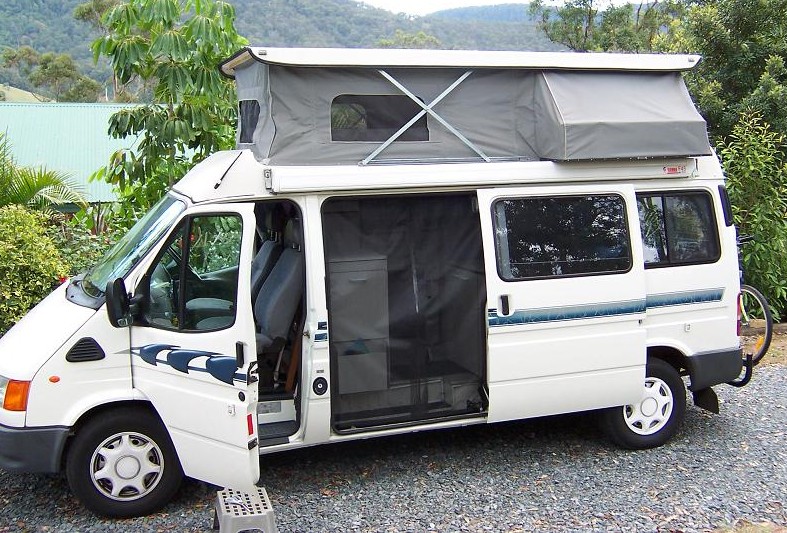

Ford Transit VG Series sliding door insect screen




Flexible Magnetic Insect Sceening Curtain for sliding door opening on Ford Transit VG Series


Toyota Hiace 200 series - year model 2006


Flexible Magnetic Insect Screen for sliding door opening on 200 series Toyota Hiace provides a total seal all round. The insect screen can be left in place without interferring with the operation of the sliding door. Entry and exit is via overlapping mesh panels sealed from top to bottom with a flexible magnetic fastener.



Subaru Outback Station Waggon


Flexible Magnetic Insect Screens for the right side and left side centre windows on Subaru Outback station waggon. Flexible Magnetic Insect Screens can be made for any make and model of vehicle.


Volkswagen Transporter T4 sliding door insect screen


Flexible Magnetic Insect Screening Curtain is an effective insect screening barrier on Volkswagen Transporter T4 Trakka Conversion. In the images below, the owner of this vehicle; Mick, demonstrates how easy it is to exit the vehicle by pushing through the overlapping panels and breaking the magnetic seal.

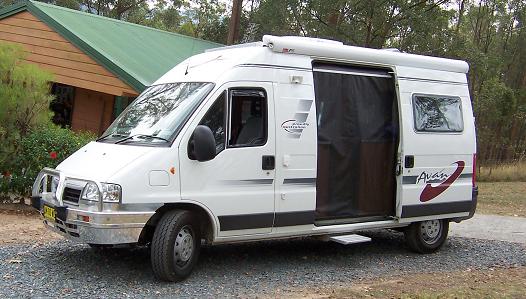

Fiat Ducato sliding door insect screen


Flexible Magnetic Insect Screen for sliding door opening on Fiat Ducato provides for improved airflow via the large door opening of the vehicle. Although this product can remain in place without interfering with the operation of the door it can be easily removed for cleaning and storage.

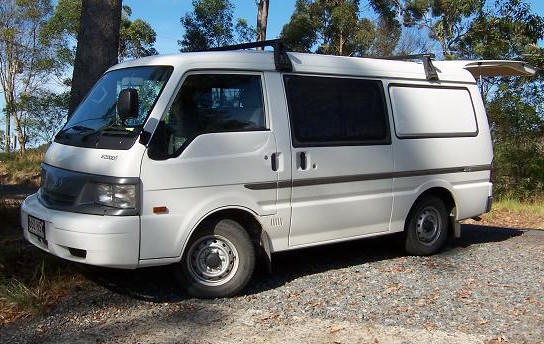

Mazda E2000


Flexible Magnetic Insect Screen for sliding door window of Mazda E2000


Ford Transit Van VH Series - 125 T350

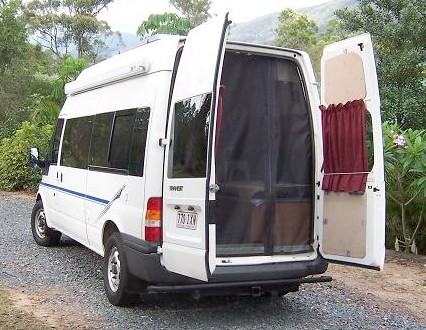

Tailgate insect screen for Ford Transit Motor Home. Comprised of three overlapping panels sealed with flexible magnetic fasteners allows for easy access into and out of the vehicle.




Mercedes Sprinter sliding door & tailgate insect screens



Magnetic Insect Screening Solutions for sliding door opening and tailgate opening on Mercedes Sprinter. Flexible magnetic fasteners provide a 100% seal to keep insects outside where they belong but allows for easy access to the occupants when entering and exiting the vehicle.



Volkswagen Transporter T5


Flexible Magnetic Insect Screen for inwards sliding window on sliding door of Volkswagen Transporter T5.


Passenger and driver window openings - Flexible Magnetic Insect Screens manufactured to fit over weather shields.

Toyota HiAce SBV Campervan


Sun Shield Cabin Set custom cut for Toyota Hiace SBV campervan provides total privacy for the occupants inside whilst assisting with interior temperatures in summer and winter and UV protection of dashboard and interior upholstery.

Rollaway Cassette Insect Screening System:
Fiat Torino Installation



The Rollaway Cassette Insect Screening System installed in a Fiat Torino sliding door application.
This system is also suitable for the Tailgate opening of vans and the door openings of some bus conversions



Nissan Civilian


Flexible Magnetic Insect Screen installed on sliding window of Nissan Civilian



Toyota Troop Carrier


Toyota Troop Carrier fitted with Flexible Magnetic Insect Screens to the sliding windows and passenger and driver door windows.

Iveco Daily

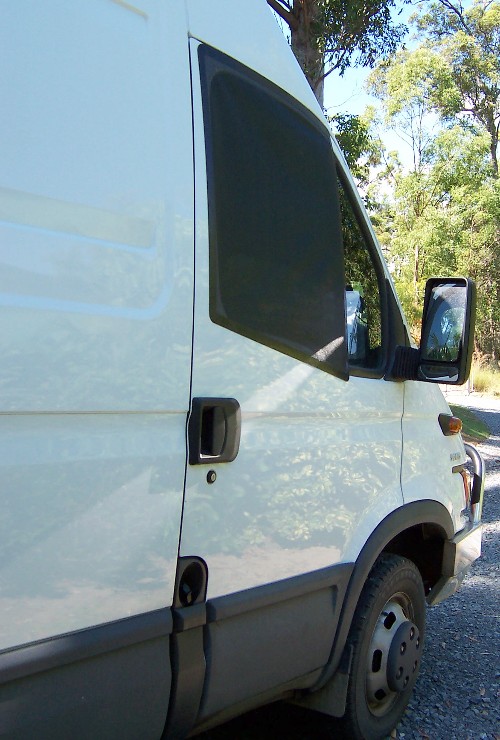

External installation of Flexible Magnetic Insect Screens for the passenger and driver door window openings of Iveco Daily. Also fitted is a windscreen Sun Shield with cut out for windscreen mounted GPS in bottom corner.

Volkswagen Transporter T4


The above example of an external installation of a Flexible Magnetic Insect Screen for a Volkswagen Transporter T4 has been manufactured to accomodate a weather shield fitted to the passenger door window

Flexible Magnetic Insect Screen for the passenger door window and the left side sliding door window of a Volkswagen Transporter T4.

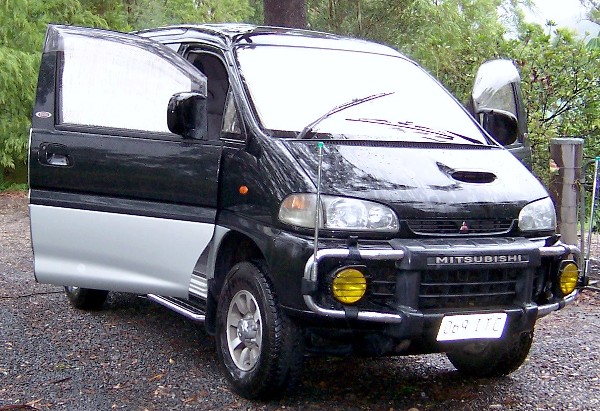

Mitsubishi Delica Royal Exceed (Y/M 1994)

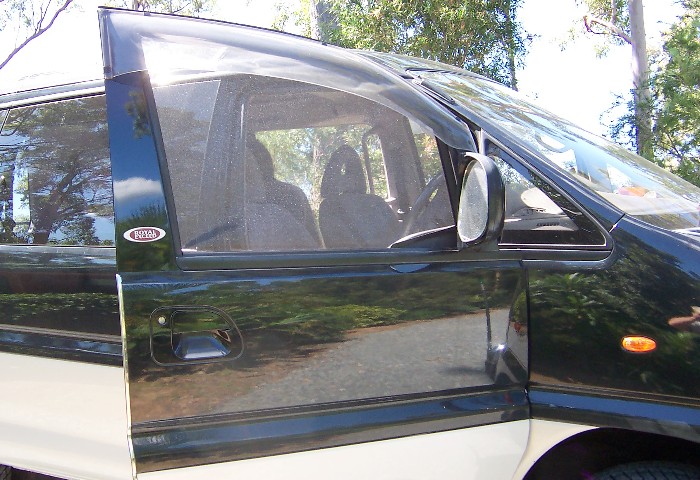

Left & above: Internal installation of Flexible Magnetic Insect Screen required on Mitsubishi Delica Royal Exceed due to weather shields installed on driver and passenger windows.

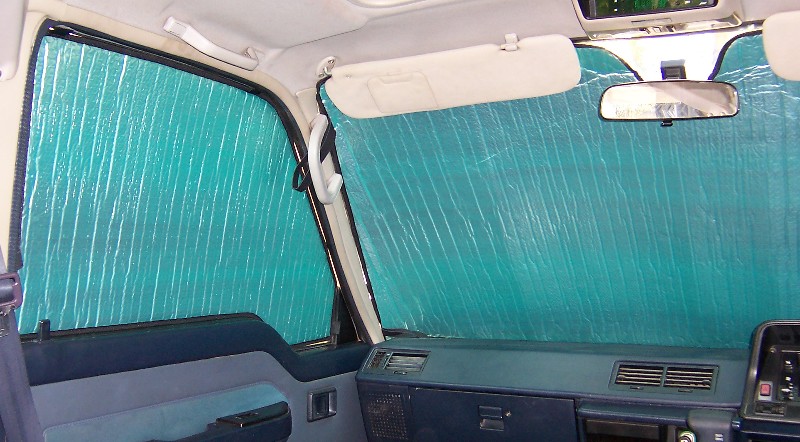

Sun Shield Cabin Set (windscreen, passenger and driver windows)

Tailgate Insect Screen Assembly installed in Mitsubishi Delica

Toyota HiAce 2005 Year Model


Above: Internal installation of Flexible Magnetic Insect Screen on driver's door window of 2005 year model Toyota Hiace.
Left: External installation of Flexible Magnetic Insect Screen on passenger door window of 2005 year model Toyota Hiace.

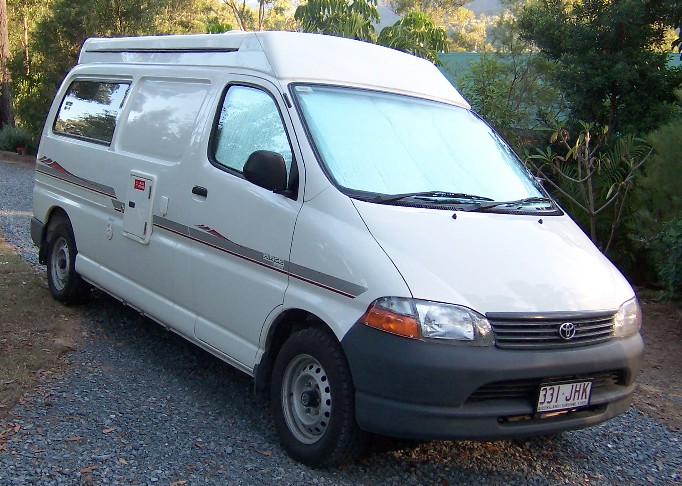

Above: Sun Shield Cabin Set installed on 2005 year model Toyota Hiace.

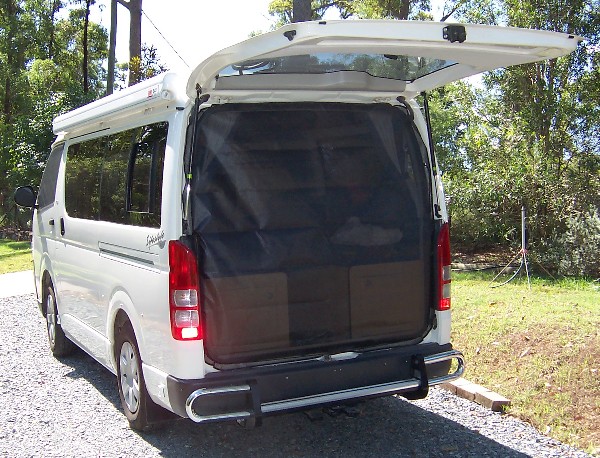

Left: Tailgate Insect Screen Assembly installed on 2005 year model Toyota Hiace.

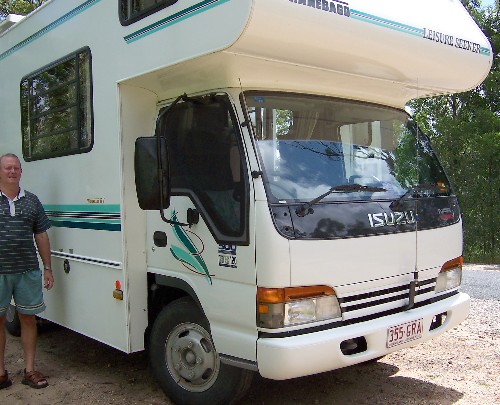

Isuzu NPR300 Cab

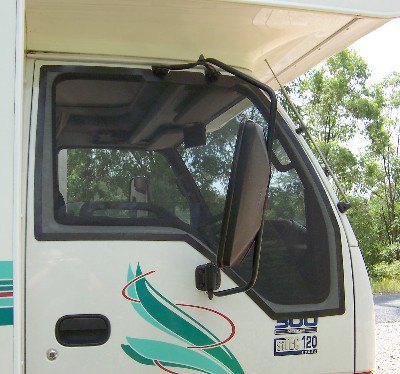

Flexible Magnetic Insect Screens for driver and passenger windows on Isuzu NPR300 Truck Cab. Provides  a large area for flow through ventilation to motor home living quarters with a 100% seal against flies , mosquitoes and other insect pests.

Ford Transit VH Series

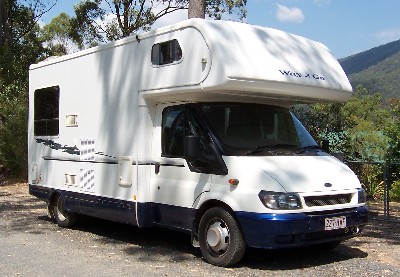

Ford Transit (y/m 2003). Internal installation of Flexible Magnetic Insect Screen to passenger and driver side doors.
Rear left side window of 2003 Ford Transit. Flexible
Magnetic Insect Screen installed over glass framed
window opening using magnetic sub frame installed onto non ferrous surface with adhesive tape to provide magnetic attraction for magnetic insect screen
frame.


Sun Shield installed on passenger window of 2003 Ford Transit Motor home.





Mercedes MB140                          Toyota Hiace R100 Series


Mercedes MB140 - Flexible Magnetic Insect Screen for left side centre window on sliding door.
             Toyota Hiace R100 Series left and right side rear Flexible Magnetic Insect Screens. Note how the screen also covers the vent at the rear of the window.

Nissan Civilian


Magnetic Flyscreen Door for 1993
Nissan Civillian Motorhome.


Mercedes Sprinter

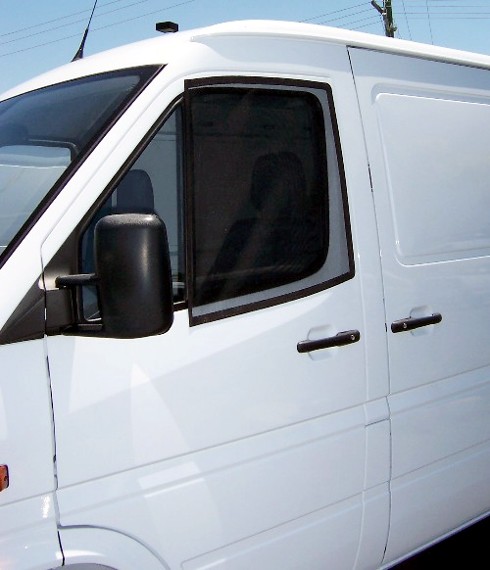

Mercedes Sprinter - Flexible Magnetic Insect Screen for front left (passenger)and front right (drivers) windows.

Mitsubishi Express SH Series

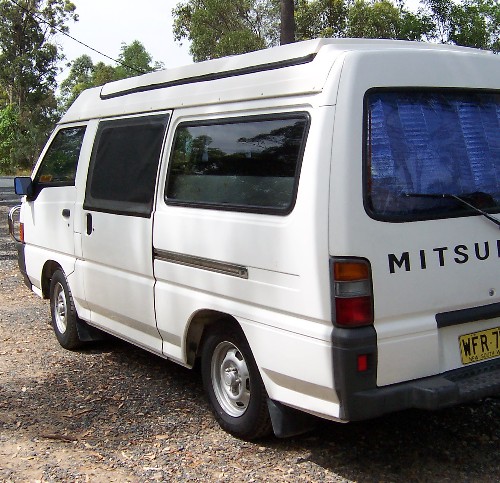

Mitsubishi Express SH Series - 1993/1994. Flexible Magnetic Insect Screen with Midgee Mesh for left side sliding door window.

Toyota Hiace R100 Series

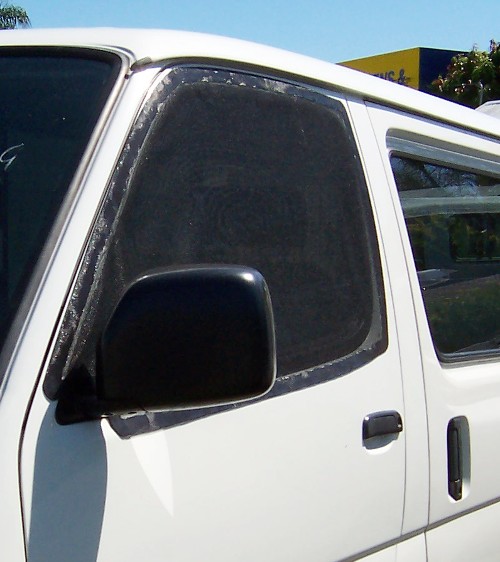

 Toyota Hiace 100 Series. Flexible Magnetic Insect Screen for front left (passenger) and front right (driver's) windows.

Toyota Hiace YK Series

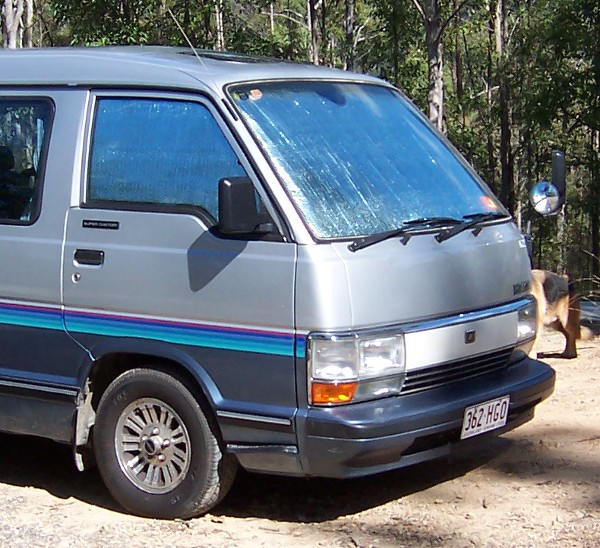

Sun Shields, also referred to as Sun Screens, Solar Screens or Solar Shields are custom cut to fit any size window to keep you cooler in summer and warmer in winter and also to provide privacy. Pictured: Cabin set for Toyota Hiace Super Custom.


Winnebago Transit



Flexible Magnetic Insect Screens installed internally on rear left and right side windows of Winnebago Transit.


Mercedes Sprinter

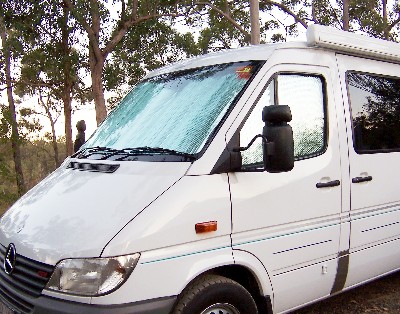

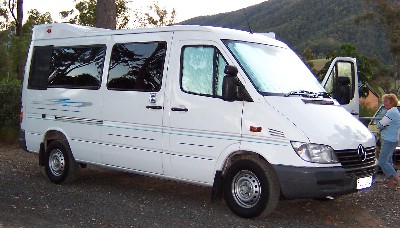

2004 Mercedes Sprinter fitted with a Sun Shield Cabin Set and Flexible Magnetic Insect Screens for left and right rear sliding windows.





 Volkswagen Transporter T4

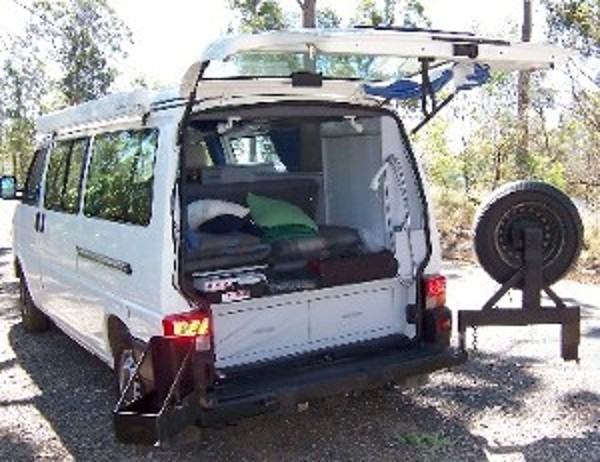

Tailgate Insect Screen Assembly installed on 2003 Volkswagen Transporter Campervan.

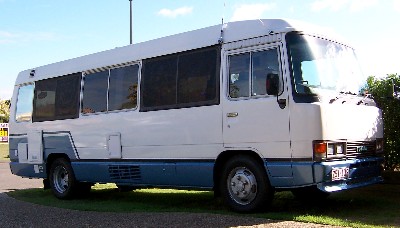

Toyota Coaster

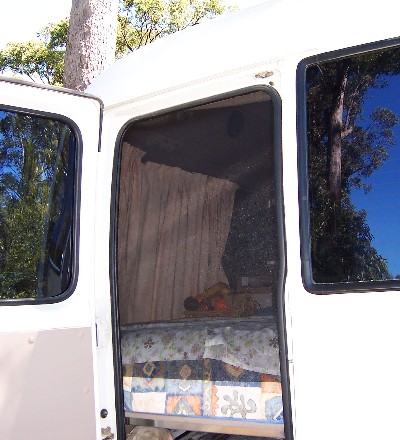

      Rear door of 1996 Toyota Coaster with internal
      installation of Flexible Magnetic Insect Screen.
      The screen is 880mm deep which is sufficient to seal
      the inside of the vehicle to insect entry.



Fiat Ducato

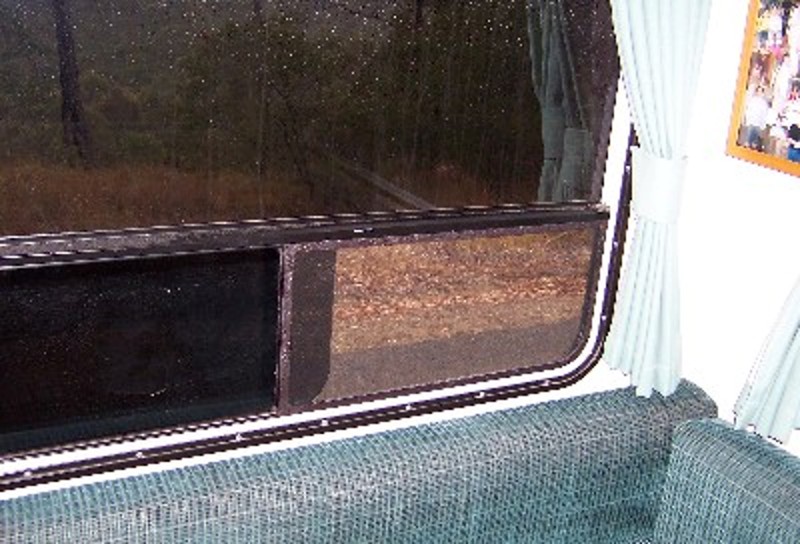

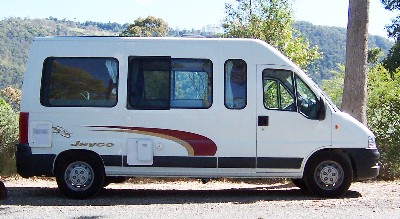

2003 Fiat Ducato. Flexible Magnetic Insect Screens for left and right side sliding windows.


Toyota Coaster

1988 Toyota Coaster. Flexible Magnetic Insect Screen fitted to the ferrous metal body panels surrounding the alloy window frame



Toyota Hiace Campervan YK Series

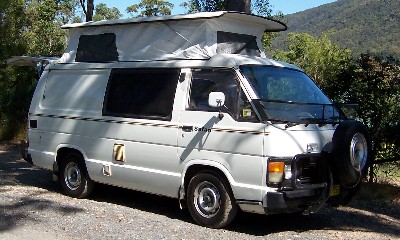

1989 Toyota Hiace Pop Top Campervan. Flexible Magnetic Insect Screen for right side sliding window and front left side retractable window.



 Winnebago Freeway


Internal installation of Flexible Magnetic Insect Screen in Winnebago Freeway.

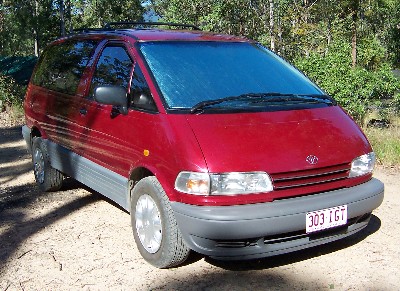

Toyota Tarago TCR10R2

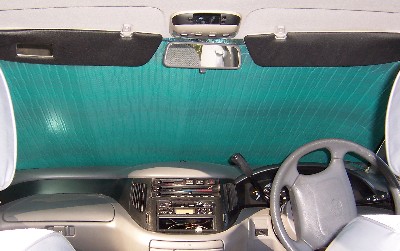

Toyota Tarago TCR10R2: Custom patterned Sun Shields for oversized windscreens. Reduces interior temperatures and protects interior from sun's damaging rays. Provides privacy if camping.

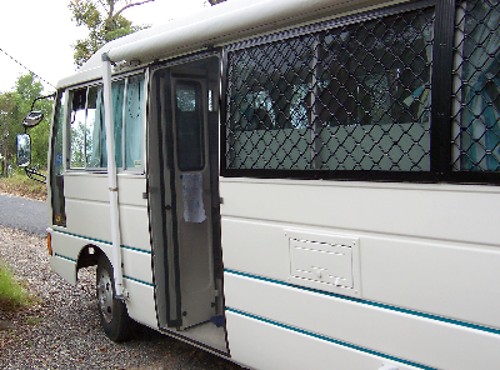

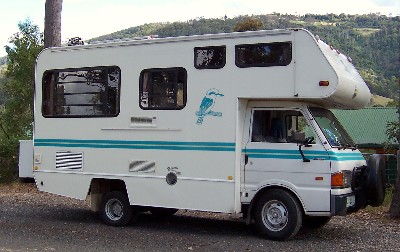

Mazda T3500

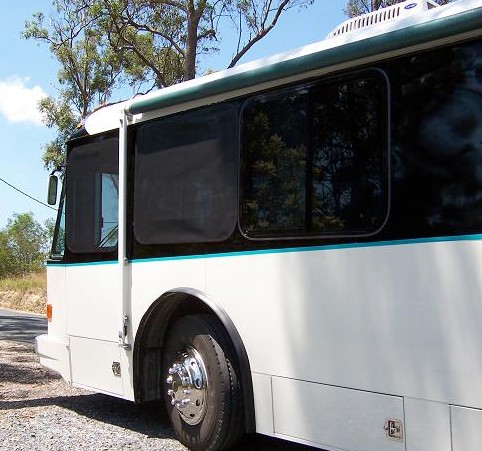

Flexible Magnetic Insect Screen installation on Mazda T3500 18 seater bus conversion for Bruce and Doreen from Barrabra, NSW. In this installation the screens are fitted externally employing the magnetic sub frame which is attached to the alloy window frames of the bus.





Flexible Magnetic Insect Screens for Portlight and marine hatch on a boat

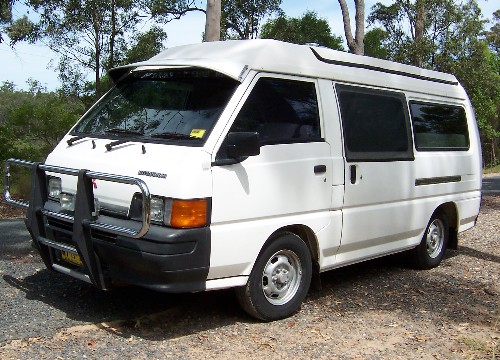

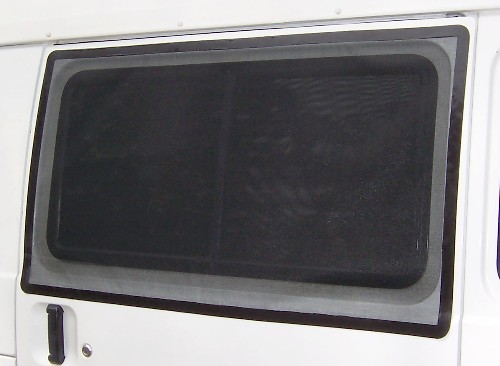

Flexible Magnetic Insect Screen for window on sliding door of 1983 Mitsubishi Starwagon

Flexible Magnetic Insect Screen for roof hatch on Silver Eaglebus conversion.
Note small magnetic door panels to allow access to roof hatchhandles.

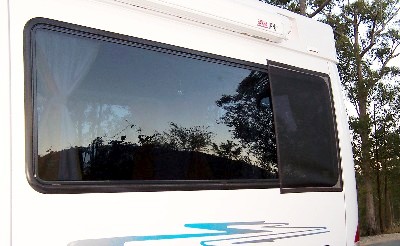

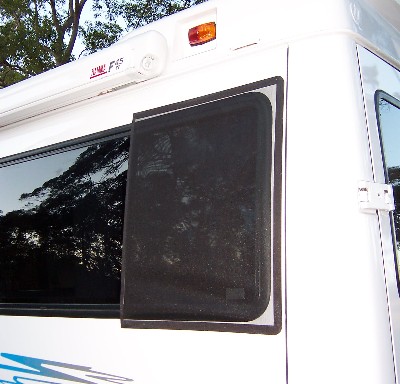

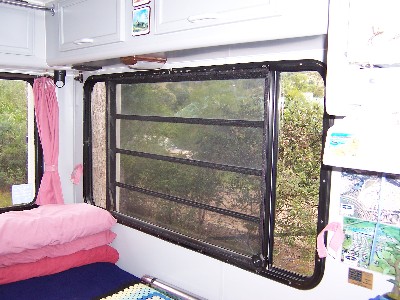

Flexible Magnetic Insect Screen internal installation rear window - Winnebago Alpine




Flexible Magnetic Insect Screen for sun roof opening - 1987 Toyota Hiace Super Custom

Flexible Magnetic Insect Screens for front windows of 1996 Ford Transit Van Flexible Magnetic Insect Screen - front left hand window Ford Transit 125 T350

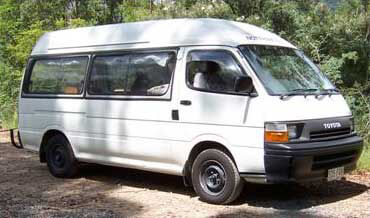

Flexible Magnetic Insect Screens for the right and left side sliding windows - 1990 Toyota Commuter.

Flexible Magnetic Insect Screens for the port and starboard sliding windows on the middle deck of a boat

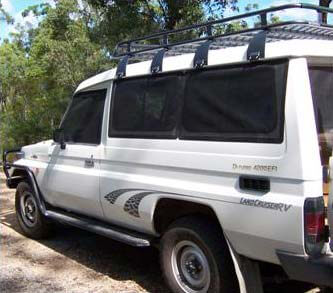

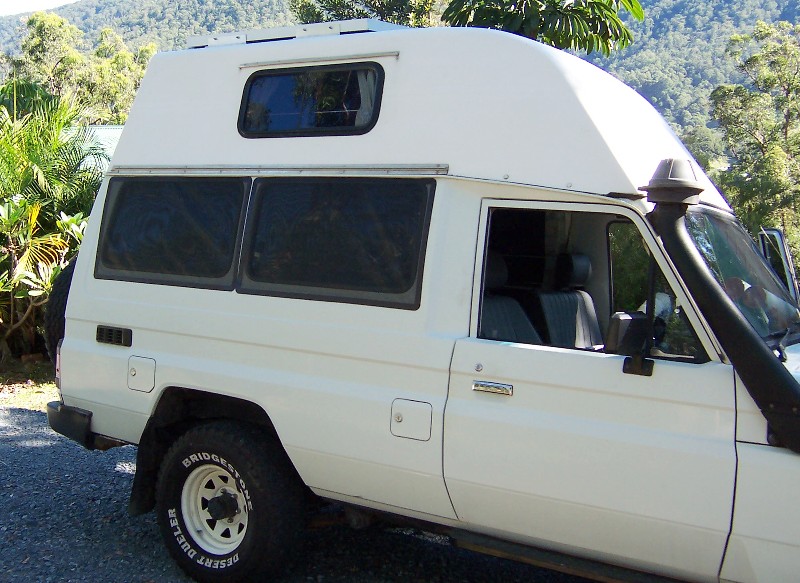

2004 Toyota Troop Carrier : Flexible Magnetic Insect screens for all retractable and sliding windows. In this instance the screens are made to be installed on the outside of the vehicle. Optionally; Troopy sliding window insect screens can also be made to a size to be installed internally.


Notice: To protect our intellectual property, our insect screening innovations are patent protected.
