Fiat Ducato X250 Series

A very popular vehicle for motorhome conversion in Europe the reliable, innovative, durable and seriously spacious Fiat Ducato X250 Series was released in Australia in February 2007.

Products available for the Fiat Ducato X250 series include insect screening solutions and custom patterned Sun Shields.

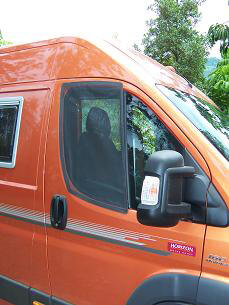

Insect Screens for Window Openings:

The Flexible Magnetic Insect Screen attaches externally to the ferrous metal body panels that surround the window frames. The side windows installed on some motorhome conversions are aftermarket windows and we may have to confirm the window dimensions at the time of ordering.

Flexible Magnetic Insect Screens installed on the passenger and drivers door window openings used in combination with the tailgate insect screen provides for maximum flow through ventilation. Flexible Magnetic Insect Screens installed on the passenger and drivers door window openings where the passenger and/or drivers seats can be rotated 180 degrees provides for fresh air induction directly adjacent to your seating position.

The Flexible Magnetic Insect Screen rolls up for storage in a tube or optionally can be stored flat.

Flexible Magnetic Insect Screening products are available to screen the following windows:

1. Passenger Door Window Opening for EXTERNAL installation where weather shields are not installed.
2. Drivers Door Window Opening for EXTERNAL installation where weather shields are not installed.
3. Any Sliding Window Opening (dimensions need to be confirmed with you prior to manufacture).

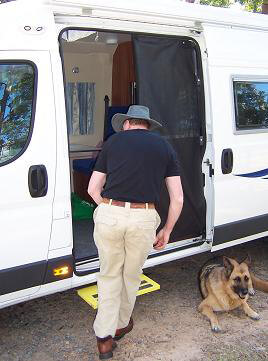

Insect Screen for Sliding Door Opening:

The Sliding Door Opening is nominally 130cm wide by 172cm high.

A Flexible Magnetic Insect Screen for the Sliding Door Opening is comprised of two overlapping mesh panels secured internally at the head of the door opening in a track. Flexible magnet provides the seal down each side of the opening and between the overlapping mesh panels. The bottom seal is also provided by a flexible magnetic fastener.

Entry into and out of the vehicle is simply a matter of moving through the overlapping mesh panels. When insects are not an issue one half of the width of the insect screen can be slid out of the track and folded and secured against the other half of the screen to provide one half of your door opening with an unobstructed thoroughfare.

The sliding door insect screen can be totally removed in around 10 to 15 seconds for cleaning and is just as easy to reinstall. When the sliding door insect screen is not required it can be easily removed for storage using the optional storage hanger.

The Sliding Door Flexible Magnetic Insect Screen is a robust product that provides an effective barrier against insect entry.

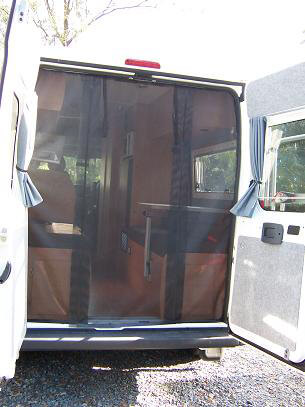

Insect Screen for Tailgate Opening:

A Flexible Magnetic Insect Screen for the tailgate opening provides an effective insect screening barrier to an opening nominally 1565mm wide x 1790mm high.

A Flexible Magnetic Insect Screen for the tailgate Opening is comprised of three overlapping mesh fabric panels secured internally at the head of the door opening in a track. The seal for the left and right side vertical perimeters is also provided by a fixed tracking system.

The seal between the overlapping mesh panels is provided by a two part flexible magnetic fastener that runs the full height of the tailgate opening. The bottom seal is provided in part by hook and loop fastener and in part by a flexible magnetic fastener.

The centre panel of the tailgate insect screen can be rolled up out of the way and held in place with two ties that are attached to the top of the insect screen assembly.

The tailgate opening Flexible Magnetic Insect Screen can be easily removed for cleaning and/or storage and reinstalled by sliding the insect screens perimeter into the fixed tracking system.

Entry into and out of your vehicle is simply a matter of moving through the centre overlapping mesh panel. The product is robust and provides an effective barrier against insect entry.

Sun Shields for Thermal Protection and Privacy:

Sun Shields are available for internal installation to the windscreen only, or optionally, as a cabin set (includes the windscreen and also the passenger and drivers door windows.

Sun shields can also be made for any other window or hatch in your vehicle.
