Fiat Ducato X240 Series (2002 - 2007)

The Fiat Ducato X244 series arrived in Australia in January 2002 with an extensive range of Ducato versions targeted to the Motorhome market. Six cab chassis versions were offered plus two vans; the Ducato LWB medium roof van (3450mm wheelbase) (4000GVM) 2.3L 88kW engine and the Ducato ELWB medium roof van (4035mm wheelbase) (4000GVM) 2.3L 88 kW engine.

Products available for the Fiat Ducato X244 series include insect screening solutions and custom patterned sun shields.

Insect Screens for Window Openings:

The Flexible Magnetic Insect Screen attaches externally to the ferrous metal body panels that surround the window opening. Some X244 series Ducatos have factory fitted side sliding windows and other X244 series Ducatos are fitted with aftermarket windows. Flexible Magnetic Insect Screens are available for both options. We will have to confirm with you the dimensions of your aftermarket windows at the time of ordering.

Flexible Magnetic Insect Screens installed on the passenger and drivers door window openings used in combination with the tailgate insect screen provides for maximum flow through ventilation. Flexible Magnetic Insect Screens installed on the passenger and drivers door window openings where the passenger and/or drivers seats rotate through 180 degrees provides for fresh air movement directly adjacent to your seating position.

The Flexible Magnetic Insect Screen  rolls up for storage in a tube or optionally can be stored flat.

Flexible Magnetic Insect Screening products are available to screen the following windows:

1. Passenger Door Window Opening for EXTERNAL installation where weather shields are not installed.
2. Drivers Door Window Opening for EXTERNAL installation where weather shields are not installed.
3. Factory installed sliding window Flexible Magnetic Insect Screen -  window size nominally 122cm wide x 76cm high
4. Factory installed sliding window half size Flexible Magnetic Insect Screen - window panel nominally 61cm wide x 76cm high
5. Any aftermarket window opening (dimensions need to be confirmed prior to manufacture)

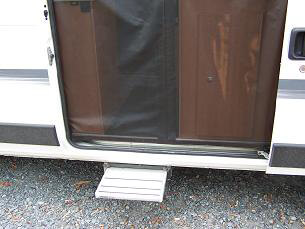

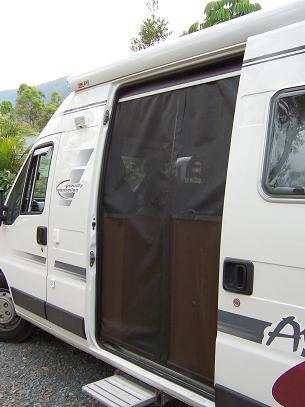

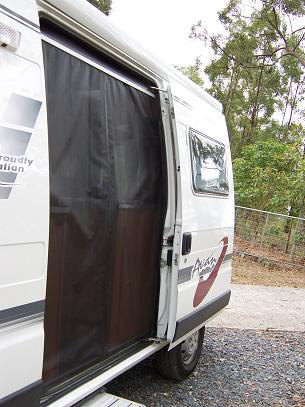

Insect Screen for Sliding Door Opening:

The sliding door opening is nominally1300mm wide x 1768mm high.

Because the sliding door upper support arm returns to a track located  at the head of the door opening inside the vehicle the Fiat Ducato X244 Series requires a special sealing mechanism to accomodate the travel of the support arm as the sliding door is opened and closed.

The track that supports the Flexible Magnetic Insect Screen for the sliding door is attached to an alloy rectangular section that is positioned 70mm below the top of the door opening for the full width of the opening. The 70mm x 1300mm slot provides for the forward and reverse travel of the upper support arm as the door is opened and closed. A self sealing device provides for a substantial seal closing around the swing arm in its various positions.

The Flexible Magnetic Insect Screen component is comprised of two overlapping mesh panels secured internally in a track 70mm below the top of the door opening. Flexible magnet provides the seal down each side of the opening and between the overlapping mesh panels. The bottom seal is also provided by a flexible magnetic fastener.

Entry into and exit out of the vehicle is simply a matter of pushing against the mesh to break the magnetic seal and then moving through the overlapping mesh panels. When insects are not an issue one half of the width of the insect screen can be slid out of the track and folded back and secured against the other half of the screen to provide one half of the door opening with an unobstructed thoroughfare.

The sliding door insect screen can be totally removed in around 10 to 15 seconds for cleaning and is just as easy to reinstall. When the sliding door insect screen is not required it can be easily removed for storage using the optional storage hanger.

The sliding door insect Screen is an effective barrier against insect entry.

Insect Screen for Tailgate Opening:

A Flexible Magnetic Insect Screen for the tailgate opening is comprised of three overlapping mesh panels secured internally at the head of the door opening in a track. The seal for the left and right side vertical perimeters is also provided by a fixed tracking system.

The seal between the three overlapping mesh panels is provided by a two part flexible magnetic fastener that runs for the full depth of the tailgate opening. The bottom seal is provided in part by hook and loop fastener and in part by a flexible magnetic fastener.

The centre panel of the tailgate insect screen can be rolled up out of the way and held in place with two ties that are attached to the top of the insect screen assembly.

The tailgate opening Flexible Magnetic Insect Screen can be easily removed for cleaning and/or storage and reinstalled by sliding the insect screens perimeter into the fixed tracking system.

Entry into and out of the tailgate of your vehicle is simply a matter of breaking the magnetic seal of the centre panel by pushing on the mesh and moving through the overlapping panels. The product is robust and provides an effective barrier against insect entry.

Sun Shields for Thermal Protection and Privacy:

Sun Shields are available for internal installation to the windscreen only, or optionally, as a cabin set (includes windscreen, and also the passenger and drivers door windows).
